8038 AC axial fan, dimensions 80×80×38mm, 220V/110V selectable, dual ball bearings, airflow up to 31CFM, noise as low as 35dBA. Pure copper motor, thickened iron frame, plug and play. Suitable for ventilation and heat dissipation of industrial cabinets, power distribution cabinets, power modules, inverters, and other equipment. Includes metal mesh cover and screws.
80x80x38MM (3.14″x3.14″x1.49″) -AC COOLING FAN SERIES
| MODEL： | FH8038 |
| VOLTAGE： | 110V/220V |
| MATERIAL: | Frame: Aluminum/Impeller: Plastic (UL94V-0) |
| EXPECTED LIFE: | Ball Bearing 50,000hrs (40°C) |
| SAFETY STANDARDS: | CCC/CE/RoHs/ISO9001 |
Pure copper AC motor, stable and energy-saving
– Pure copper coils generate little heat, suitable for long-term continuous operation.
Dual ball bearings/oil-impregnated bearings available
– Ball bearings offer longer lifespan, while oil-impregnated bearings provide quieter operation; choose according to your needs.
Compact iron frame, sturdy and durable
– 80mm square iron frame with rust-proof surface treatment and shock-absorbing pads at the four corners.
Direct AC connection, plug and play
– No external power adapter required; simply connect the two wires (L/N) to operate.
Why Choose Us?
- Certifications: CE, RoHS, FCC certified, compliant with international export standards.
- Dropshipping: Supports small batch mixed orders and sample testing.
- OEM/ODM: Highly customizable wires, terminals, and coating colors to suit your equipment needs.

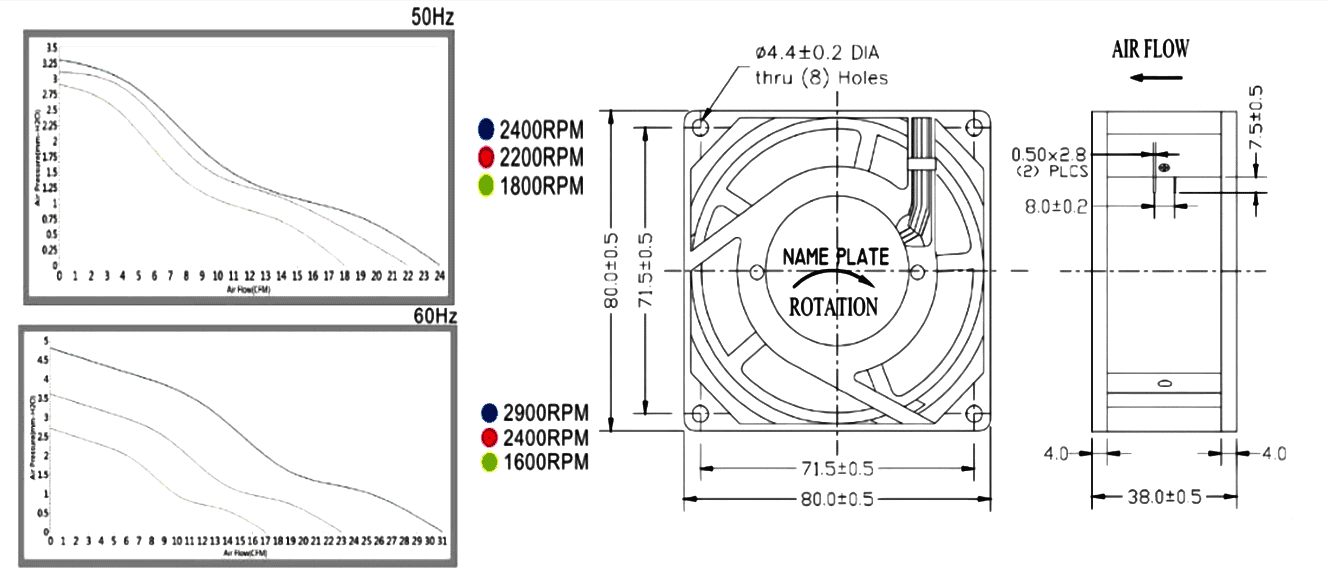

| P&Q CURVE (AT RATED VOLTAGE) | DIMENSIONS DRAWING |
| Model | Bearing Type | Rated Voltage | Free | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Weight | |
| PART NO. | B | VAC | Hz | AMP | WATT | R.P.M | m3/min | CFM | mmH2O | DB-A | g |
| 型号 | 轴承 | 电压 | 频率 | 额定电流 | 额定功率 | 转速 | 最大风量 | 最大风压 | 噪音 | 重量 | |
| FH8038 | Ball | 100 to 125 | 50/60 | 0.15/0.13 | 16/14 | 2400/2900 | 0.68/0.88 | 24/31 | 3.30/4.83 | 31/35 | 340 |
| Sleeve | 100 to 125 | 50/60 | 0.15/0.13 | 16/14 | 2400/2900 | 0.68/0.88 | 24/31 | 3.30/4.83 | 31/35 | 340 | |
| Ball | 100 to 125 | 50/60 | 0.13/0.11 | 14/12 | 2200/2400 | 0.62/0.65 | 22/23 | 3.10/3.60 | 27/31 | 340 | |
| Sleeve | 100 to 125 | 50/60 | 0.13/0.11 | 14/12 | 2200/2400 | 0.62/0.65 | 22/23 | 3.10/3.60 | 27/31 | 340 | |
| Ball | 100 to 125 | 50/60 | 0.10/0.09 | 10/9 | 1800/1600 | 0.51/0.48 | 18/17 | 2.90/2.70 | 19/17 | 340 | |
| Sleeve | 100 to 125 | 50/60 | 0.10/0.09 | 10/9 | 1800/1600 | 0.51/0.48 | 18/17 | 2.90/2.70 | 19/17 | 340 | |
| Ball | 220 to 240 | 50/60 | 0.11/0.10 | 16/14 | 2400/2900 | 0.68/0.88 | 24/31 | 3.30/4.83 | 31/35 | 340 | |
| Sleeve | 220 to 240 | 50/60 | 0.11/0.10 | 16/14 | 2400/2900 | 0.68/0.88 | 24/31 | 3.30/4.83 | 31/35 | 340 | |
| Ball | 220 to 240 | 50/60 | 0.09/0.08 | 14/12 | 2200/2400 | 0.62/0.65 | 22/23 | 3.10/3.60 | 27/31 | 340 | |
| Sleeve | 220 to 240 | 50/60 | 0.09/0.08 | 14/12 | 2200/2400 | 0.62/0.65 | 22/23 | 3.10/3.60 | 27/31 | 340 | |
| Ball | 220 to 240 | 50/60 | 0.08/0.07 | 10/9 | 1800/1600 | 0.51/0.48 | 18/17 | 2.90/2.70 | 19/17 | 340 | |
| Sleeve | 220 to 240 | 50/60 | 0.08/0.07 | 10/9 | 1800/1600 | 0.51/0.48 | 18/17 | 2.90/2.70 | 19/17 | 340 | |
| Ball | 380 | 50 | 0.09 | 18 | 2400 | 0.68 | 24 | 3.3 | 31 | 340 | |
| Sleeve | 380 | 50 | 0.09 | 18 | 2400 | 0.68 | 24 | 3.3 | 31 | 340 | |
| 提示1:如果您需要的转速,电压,或者其它功能不在这清单上，请与我们联系. If you want another RPM,voltage or functions which one in the lise ,please contact our sales. | |||||||||||
| 提示2:以上数据仅供参考,产品详细信息请参照承认书,如有变更恕不另行通知. Above specifcations are only for reference ,product have a detail in the approcal sheet, if specifaction are subject to change without notice. | |||||||||||
FAQ
Should I connect to AC fan 110V or 220V? How do I tell the difference?
Check the fan’s nameplate label; it will clearly indicate the rated voltage (e.g., “AC 220V” or “110V”). The wiring method is the same (L/N is not reversed), but they must never be mixed—a 220V AC exhaust fan connected to 110V will run at extremely low speed or not at all, and a 110V fan connected to 220V will burn out immediately. Please choose the appropriate AC voltage based on your intended use scenario when purchasing.
Can we get samples for testing for free?
Yes, we can provide free sample testing for low-cost products.
What is the warranty period for a fan?
Under normal usage conditions, we offer a 12-month warranty period.
