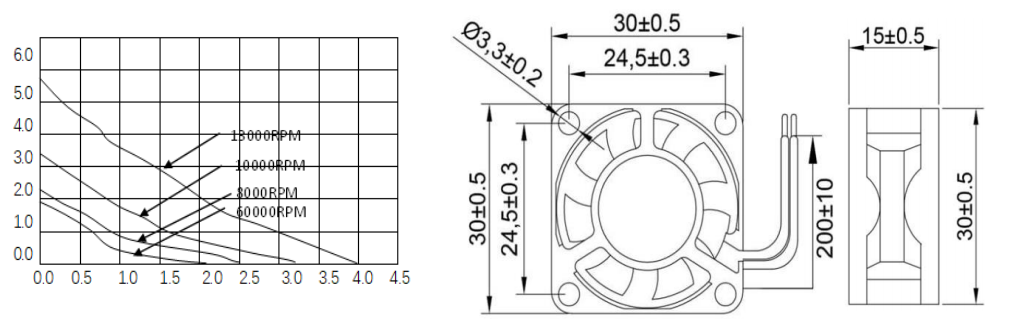

The 3015 cooling fan is a miniature DC axial fan measuring 30×30×15mm, designed for efficient cooling in compact spaces. It supports 5V, 12V, and 24V voltage compatibility and features environmentally friendly, fire-retardant PBT material for the blades and a high-precision dual ball bearing or oil-impregnated bearing structure, resulting in low noise, high airflow, and long lifespan. The speed range covers 6000 to 13000 RPM, with an airflow of 2.45-5.5 CFM. Optional features include PWM speed control, FG speed measurement, and RD alarm functions. Widely applicable to laptops, projectors, 3D printers, industrial control equipment, and power modules, it is an ideal choice for solving overheating problems.

---

Multiple Voltage and Speed ​​Control Modes

– Offers 5V (USB/Battery) and 12V (Motherboard/Power Supply) versions, with optional 2-wire constant speed, 3-wire speed feedback, and 4-wire PWM intelligent speed control, flexibly adapting to various control systems.

Silent Long-Life Bearing System

– Dual ball bearings support 50,000 hours of continuous operation, while hydraulic bearings provide quieter operation (down to 22dBA), requiring no maintenance and operating virtually imperceptibly.

Rugged and Durable Industrial Quality

– Reinforced plastic frame, flame-retardant PBT fan blades, withstands temperatures up to 70°C, suitable for routers, switches, and other devices operating 24/7.

Why Choose Us?

• Certifications: CE, RoHS, FCC certified, compliant with international export standards.
• Dropshipping: Supports small batch mixed orders and sample testing.
• OEM/ODM: Highly customizable wires, terminals, and coating colors to suit your equipment needs.

---

---

Model	Bearing Type				Rated Voltage				Operating Voltage Range				Rated Current					Rated Input Power					Speed				Maximum Air Flow								Maximum Air Pressure							Noise				Weight
PART NO.	B/S/Y				VDC				VDC				AMP					WATT					R.P.M				m3/min				CFM				mmH2O			INH2O				DB-A				g
FH3015	B/S				5				3.5 to 7.0				0.10					0.50					6000				0.065				2.30				2.56			0.100				20.0				7.8
					5				3.5 to 7.0				0.15					0.75					8000				0.082				2.89				3.08			0.121				24.6				7.8
					5				3.5 to 7.0				0.20					1.00					10000				0.110				3.90				4.20			0.165				31.0				7.8
					5				3.5 to 7.0				0.25					1.25					13000				0.138				4.85				7.53			0.296				36.3				7.8
					12				6.0 to 13.5				0.04					0.48					6000				0.065				2.30				2.56			0.100				20.0				7.8
					12				6.0 to 13.5				0.08					0.96					8000				0.082				2.89				3.08			0.121				24.6				7.8
					12				6.0 to 13.5				0.10					1.20					10000				0.110				3.90				4.20			0.165				31.0				7.8
					12				6.0 to 13.5				0.14					1.68					13000				0.138				4.85				7.53			0.296				36.3				7.8
					24				18.0 to 27.6				0.05					1.20					6000				0.065				2.30				2.56			0.100				20.0				7.8
					24				18.0 to 27.6				0.08					1.92					8000				0.082				2.89				3.08			0.121				24.6				7.8
					24				18.0 to 27.6				0.10					2.40					10000				0.110				3.90				4.20			0.165				31.0				7.8
					24				18.0 to 27.6				0.15					3.60					13000				0.138				4.85				7.53			0.296				36.3				7.8
提示1:如果您需要的转速,电压,或者其它功能不在这清单上，请与我们联系. If you want another RPM,voltage or functions which one in the lise ,please contact our sales.
提示2:以上数据仅供参考,产品详细信息请参照承认书,如有变更恕不另行通知. Above specifcations are only for reference ,product have a detail in the approcal sheet, if specifaction are subject to change without notice.

---
