描述

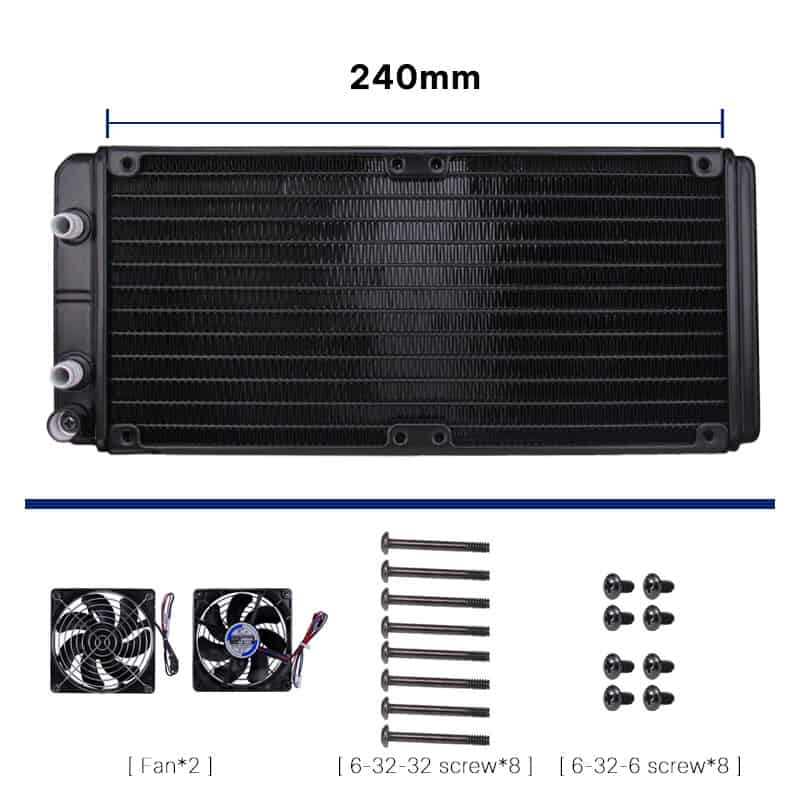

With a high density Water-cooled heat dissipation fan of 240mm, a thickness of 30mm, and 12 microchannels, it is compatible with dual 120mm high-pressure fans. Equipped with PWM ARGB fans, it supports Intel LGA1700/1200/115X and AMD AM5/AM4 platforms. Highly efficient cooling easily handles high-power CPUs.
| 92mm Water cooling fan specifications | |
|---|---|
| MODEL： | 120x120x25MM (3.62″x3.62″x0.98″) |
| VOLTAGE： | 12V/24V/48V |
| MATERIAL: | Frame: Plastic (UL94V-0)/Impeller: Plastic (UL94V-0) |
| EXPECTED LIFE: | Ball Bearing 60,000hrs (40°C) |
| SAFETY STANDARDS: | CCC,ROHS,CE,ISO9000 |
| Aluminum water cooling radiator | |
|---|---|
| Product Specifications | 240 round head 8 water tap |
| Material | Aluminum |
| External Dimensions | 275*120*28mm |
| Heat dissipation area | About 69.15dm² |
| Volume | 210ML |
| Quantity of heat dissipation pipe | 12 |
| Surface treatment process | Spray plastic anti-corrosion treatment |
| Inlet and outlet | 6/8 faucet |
Product Description
water cooling fan
| Model | 120 |
| Material | Aluminum |
| External Dimensions | 157*120*25mm |
| Density of heat Dissipation fins | 18Fold*inch |
| Quantity & specification of heat dissipation fins |
16*8mm*18tubes |
| Specification of heat dissipation pipe | 16*2mm |
| Quantity of heatdissipation pipe | 18 |
| Sealing process | Nitrogen protection brazing |
| Surface treatment process | Spray plastic anti-corrosion treatment |
|
Interface |
straight mouth = outer diameter 11MM
|
| Fan installation dimensions | 105±0.5 |
| Heat dissipation | ≈0.28m³ |
| Water caoacity | ≈120ml |
FAQ
Does it support motherboard Water-cooled heat dissipation fan PWM speed control?
Yes, supports customization of voltage, bearings, cable length, and connectors to your specifications.
Can we get samples for testing for free?
Yes, we can provide free sample testing for low-cost products.
What is the warranty period for a fan?
Under normal usage conditions, we offer a 12-month warranty period.
Why choose FENGHENG ?
ISO9001 certified, supports OEM/ODM customization (wires, terminals, colors); CE/RoHS/FCC certified, meets international export standards.
How to get the samples?
First, contact us at [email protected]. Then, tell us your product requirements (voltage, size, speed, etc.). After receiving your information and confirming your requirements, we will produce a sample within three days.
