描述

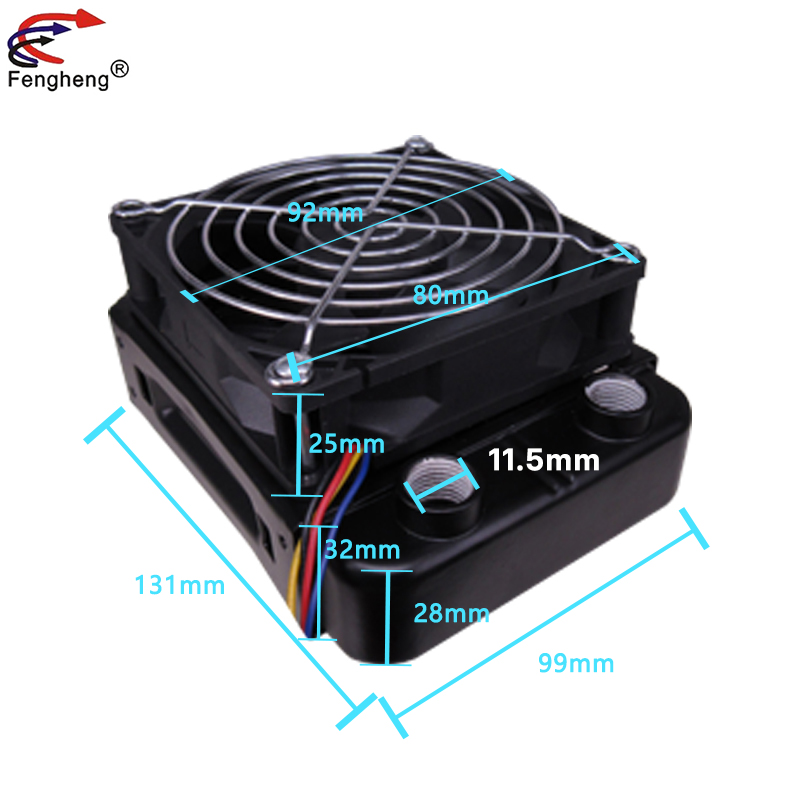

92mm x 25mm high-pressure water cooling fan, PWM speed control, 4500RPM, air pressure up to 8.32mmH₂O, optimized for small-sized water cooling radiators and compact cooling systems. Ball bearing, 73CFM. Includes mounting screws and a metal mesh cover.
| 92mm Water cooling fan specifications | |
|---|---|
| MODEL： | 92x92x25MM (3.62″x3.62″x0.98″) |
| VOLTAGE： | 12V/24V/48V |
| MATERIAL: | Frame: Plastic (UL94V-0)/Impeller: Plastic (UL94V-0) |
| EXPECTED LIFE: | Ball Bearing 60,000hrs (40°C) |
| SAFETY STANDARDS: | CCC,ROHS,CE,ISO9000 |

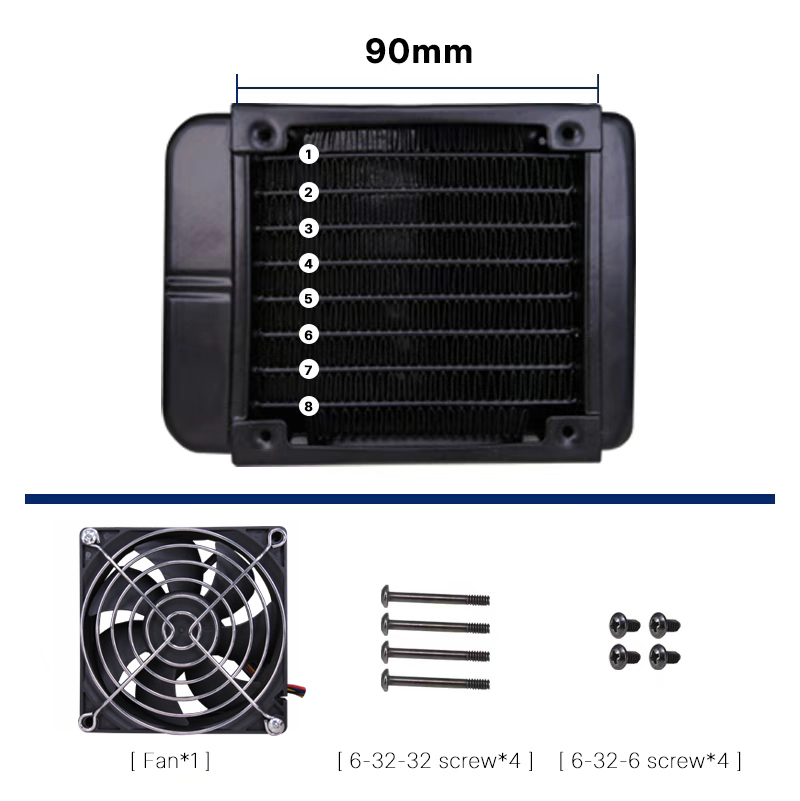

| Aluminum water cooling radiator | |
|---|---|
| Product Specifications | 90 threaded opening |
| Material | Aluminum |
| External Dimensions | 132*99.5*32.5mm |
| Heat dissipation area | About 17.24 |
| Volume | 80ML |
| Core size | 89.5x99x16mm |
| Installation dimensions | 82.5×82.5mm |
| Quantity of heat dissipation pipe | 8 |
| Surface treatment process | Spray plastic anti-corrosion treatment |
| Inlet and outlet | G1/4Threaded opening |
FAQ
Does it support motherboard Water Radiator Fan PWM speed control?
Yes, supports customization of voltage, bearings, cable length, and connectors to your specifications.
Can we get samples for testing for free?
Yes, we can provide free sample testing for low-cost products.
What is the warranty period for a fan?
Under normal usage conditions, we offer a 12-month warranty period.
Why choose FENGHENG ?
ISO9001 certified, supports OEM/ODM customization (wires, terminals, colors); CE/RoHS/FCC certified, meets international export standards.
How to get the samples?
First, contact us at [email protected]. Then, tell us your product requirements (voltage, size, speed, etc.). After receiving your information and confirming your requirements, we will produce a sample within three days.
