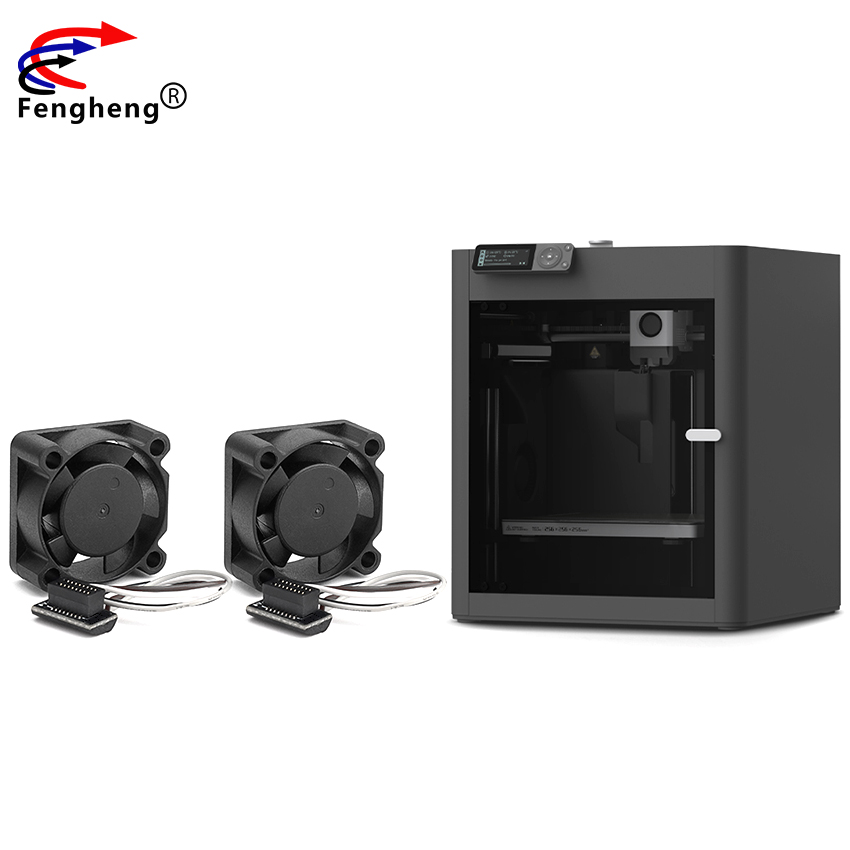

This 2510 3D Printer Fan features a standard miniature size of 25mm × 25mm × 10mm, designed for precise cooling in compact spaces. It operates quietly and has a long lifespan, making it ideal for cooling 3D printer extruders, motherboard chips, and graphics cards.
25x25x10MM (0.98″x0.98″x0.39″) -DC COOLING FAN SERIES
| MODEL： | FH2510 |
| VOLTAGE： | 5V/6V/8.4V/12V/24V |
| MATERIAL: | Frame: Plastic (UL94V-0)/Impeller: Plastic (UL94V-0) |
| EXPECTED LIFE: | Ball Bearing 60,000hrs (40°C) |
| SAFETY STANDARDS: | CCC,ROHS,CE,ISO9000 |

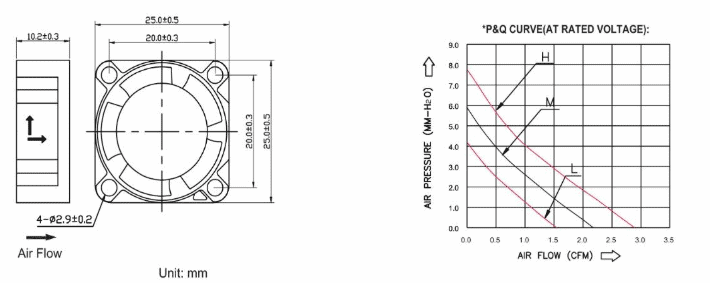

| DIMENSIONS DRAWING | P&Q CURVE (AT RATED VOLTAGE) |
| Model | Bearing Type |
Rated Voltage |
Operating Voltage Range |
Rated Current |
Rated Input Power |
Speed | Maximum Air Flow | Maximum Air Pressure |
Noise | Weight | ||
| PART NO. | B/S/Y | VDC | VDC | AMP | WATT | R.P.M | m3/min | CFM | mmH20 | INH2O | DB-A | 9 |
| FH2510A | B/S/Y | 5 | 3.5 to 7.0 | 0.10 | 0.50 | 5800 | 0.07 | 2.56 | 2.59 | 0.102 | 21.5 | 8.0 |
| 5 | 3.5 to 7.0 | 0.15 | 0.75 | 8500 | 0.11 | 3.46 | 3.76 | 0.148 | 26.5 | 8.0 | ||
| 5 | 3.5 to 7.0 | 0.17 | 0.85 | 10500 | 0.12 | 4.30 | 4.48 | 0.176 | 29.2 | 8.0 | ||
| 5 | 3.5 to 7.0 | 0.22 | 1.10 | 13000 | 0.16 | 5.56 | 5. 89 | 0.231 | 33.5 | 8.0 | ||
| 6 | 3.5 to 9.0 | 0.33 | 1.98 | 15000 | 0.18 | 6.80 | 6.80 | 0.267 | 38.5 | 8.0 | ||
| 8.4 | 3.5 to 12.0 | 0.40 | 3.36 | 29000 | 0.35 | 12.4 | 13.13 | 0.515 | 65.2 | 8.0 | ||
| 12 | 6.0 to 13.5 | 0.03 | 0.36 | 5800 | 0.07 | 2.56 | 2.59 | 0.102 | 21.5 | 8.0 | ||
| 12 | 6.0 to 13.5 | 0.05 | 0.60 | 8500 | 0.11 | 3.46 | 3.76 | 0.148 | 26.5 | 8.0 | ||
| 12 | 6.0 to 13.5 | 0.08 | 0.96 | 10500 | 0.12 | 4.30 | 4.48 | 0.176 | 29.2 | 8.0 | ||
| 12 | 6.0 to 13.5 | 0.09 | 1.08 | 13000 | 0.16 | 5.56 | 5.89 | 0.231 | 33.5 | 8.0 | ||
| 24 | 18.0 to 27.6 | 0.02 | 0.48 | 6000 | 0.07 | 2.56 | 2.59 | 0.102 | 21.5 | 8.0 | ||
| 24 | 18.0 to 27.6 | 0.05 | 1.20 | 10000 | 0.12 | 4.30 | 4.48 | 0.176 | 29.2 | 8.0 | ||
| 24 | 18.0 to 27.6 | 0.07 | 1.68 | 12000 | 0.14 | 5.13 | 5.43 | 0.213 | 29.9 | 8.0 | ||
| 提示1：如果您需要的转速，电压，或者其它功能不在这清单上，请与我们联系，If you want another RPM,voltage or functions which one in the lise ,please contact our sales. |
||||||||||||
| 提示2:以上数据仅供参考,产品详细信息请参照承认书,如有变更恕不另行通知.Above specifcations are only for reference ,product have a detail in the approcal sheet, if specifaction are subject to change without notice. |
||||||||||||
FAQ
Can this fan be used on the hot end of the Ender 3??
Yes, the 2510 fan is a common specification for heat dissipation of the hot end of printers such as the Ender 3, and it supports direct replacement with the 24V version.
Can we get samples for testing for free?
Yes, we can provide free sample testing for low-cost products.
What is the warranty period for a fan?
Under normal usage conditions, we offer a 12-month warranty period.
Why choose FENGHENG ?
ISO9001 certified, supports OEM/ODM customization (wires, terminals, colors); CE/RoHS/FCC certified, meets international export standards.
How to get the samples?
First, contact us at [email protected]. Then, tell us your product requirements (voltage, size, speed, etc.). After receiving your information and confirming your requirements, we will produce a sample within three days.
