描述
The 6025EC cooling fan is a 60mm series standard thick EC (electronic reversing) axial fan with standard external dimensions of 60mm × 60mm × 25mm. It is an efficient and energy-saving upgrade alternative to traditional AC fans. Compared to ordinary AC fans, EC fans have an energy efficiency improvement of about 50%, support 100-240V wide voltage input, adapt to global power grids, and have intelligent control functions such as PWM intelligent speed regulation, FG speed feedback, RD stop alarm, etc. The installation hole spacing is 50mm × 50mm standard specification, suitable for the vast majority of 60mm cavity devices. The product adopts an integrated square bracket design, which combines deeply optimized air ducts and high-efficiency motors in a 25mm standard thickness body, perfectly solving the pain points of high energy consumption and difficult speed regulation of traditional AC fans, while retaining the core advantage of flexible and versatile installation of bracket fans.
60x60x25MM (2.36″x2.36″x0.98″) -EC COOLING FAN SERIES
| MODEL： | FH6025 |
| VOLTAGE： | 110V/220V |
| MATERIAL: | Frame: Aluminum / Impeller: Plastic (UL94V-0) |
| EXPECTED LIFE: | Ball Bearing 50,000hrs (40°C) |
| SAFETY STANDARDS: | CCC,ROHS,CE |
1. EC electronic commutation technology, efficient and energy-saving by 50%+
This is the core highlight of this fan: it adopts EC brushless DC motor technology, which improves energy efficiency conversion rate by about 50% compared to traditional AC induction motor fans. With the same heat dissipation effect, power consumption is reduced by half, and long-term use can significantly save electricity costs; Simultaneously supporting soft start function, with low starting current and minimal impact on the power grid, protecting the equipment circuit system.
2. 100-240V wide voltage input, globally applicable without conversion
The wide voltage design is compatible with global power grid standards, whether it is 110V North American standard, 220V Chinese standard, or 240V European standard, no additional voltage converter is required. One fan travels around the world, making it particularly suitable for export equipment matching and cross-border project use.
3. Complete intelligent control functions and higher temperature control accuracy
Supports PWM pulse width modulation (0-100% stepless speed regulation), FG speed signal feedback (real-time monitoring of speed), RD stall alarm (timely reminder of abnormal situations), seamlessly integrates with equipment control systems to achieve precise temperature control, extend equipment service life, and reduce noise and energy consumption.
4. Industry standard size with strong interchangeability and compatibility
The 60mm series standard universal specification is 60 × 60 × 25mm, and the bracket installation hole position (50mm × 50mm) is fully compatible with AC/DC fans of the same size. Equipment maintenance and replacement, complete machine matching, and project modification do not require adjusting the rack and openings, and are compatible with all 60mm cavity devices on the market, resulting in lower procurement and usage costs.

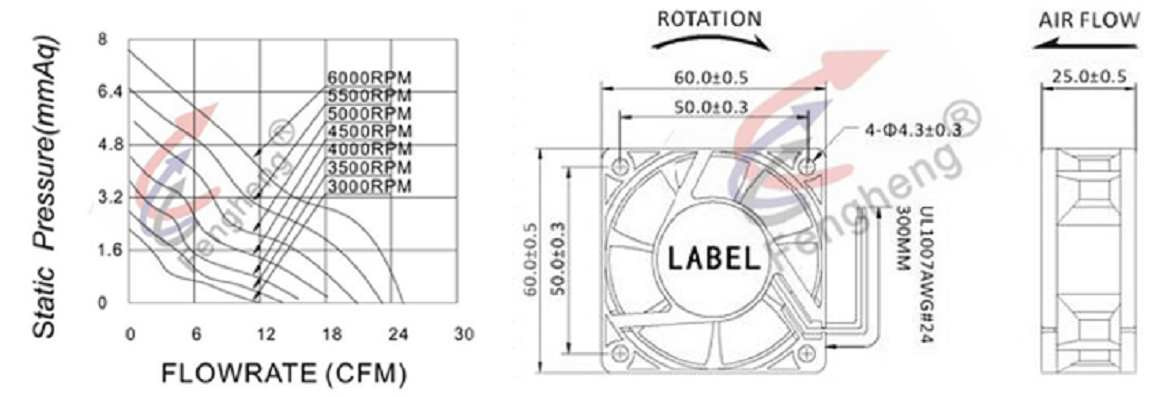

| P&Q CURVE (AT RATED VOLTAGE) | DIMENSIONS DRAWING |
FAQ
What’s the difference between an EC fan and a regular AC fan?
High efficiency, adjustable speed, and more energy-saving
Can we get samples for testing for free?
Yes, we can provide free sample testing for low-cost products.
What is the warranty period for a fan?
Under normal usage conditions, we offer a 12-month warranty period.
How to get the samples?
First, contact us at [email protected]. Then, tell us your product requirements (voltage, size, speed, etc.). After receiving your information and confirming your requirements, we will produce a sample within three days.
