描述
-

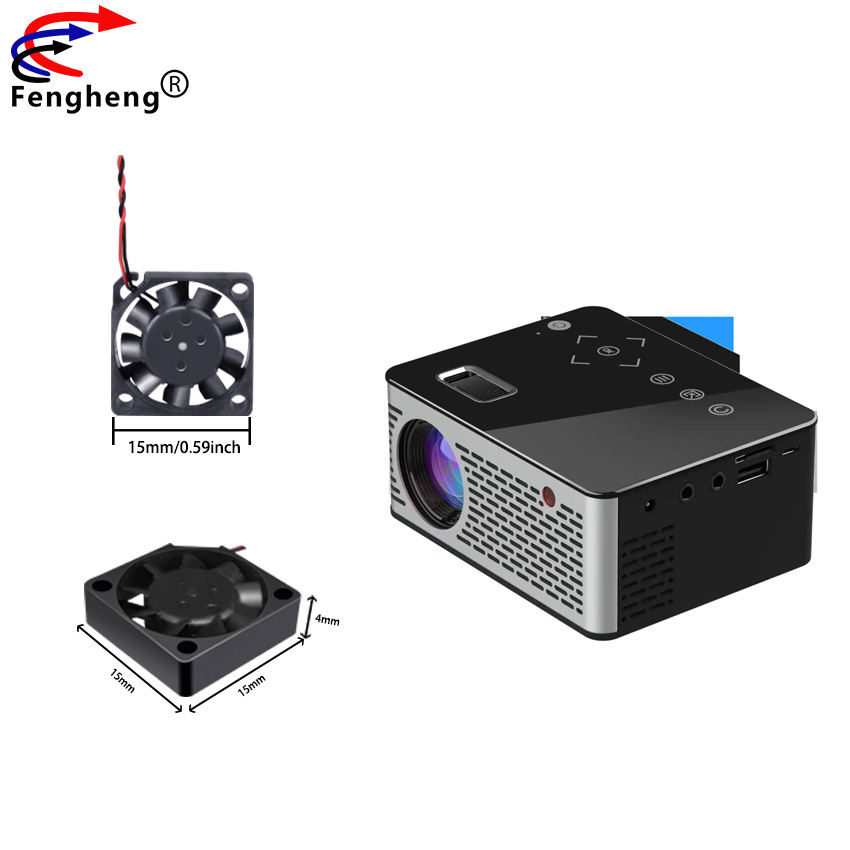

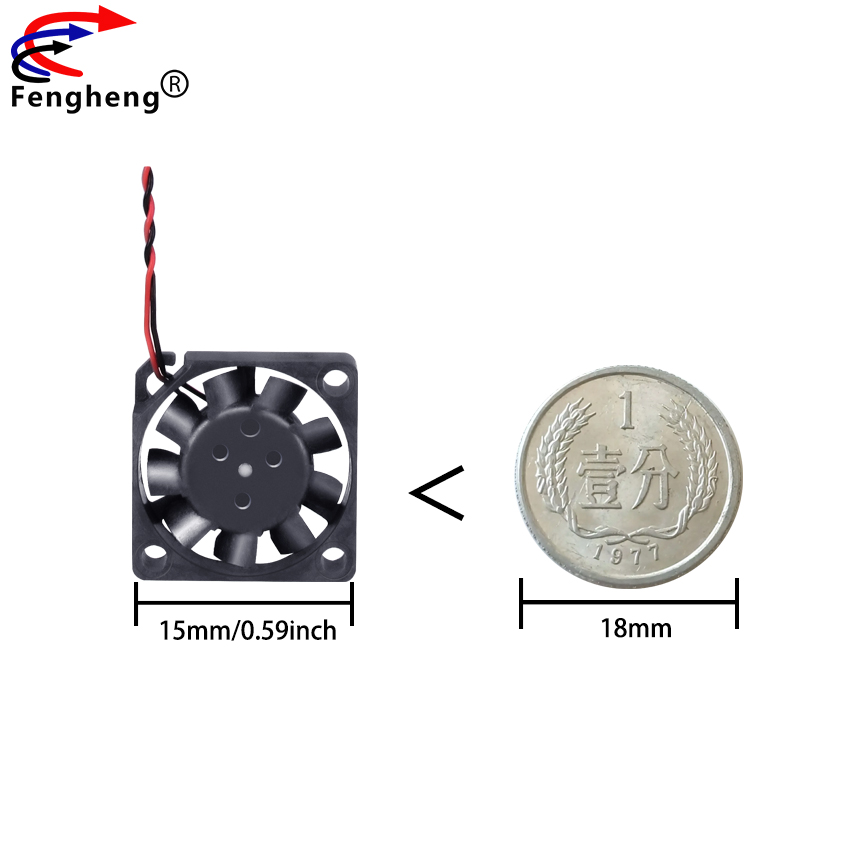

1. Minimalist Size, Powerful Performance
- Integrating a high-efficiency brushless motor within a mere 15x15x4mm footprint. Designed for high-density integrated circuits, it provides an active cooling solution at your fingertips for your mini projectors, handheld terminals, or cryptocurrency mining control equipment.
-
2. Ultra-Thin 4mm, Breaking Space Limitations
- Born for ultra-thin portable devices. Its ultra-thin 4mm profile perfectly fits NVMe SSD coolers, expansion boards, or AR/VR wearables, solving the problem of heat buildup in confined spaces.
-
3. Low Noise Operation, High Airflow Balance
- Utilizing a precision hydraulic/ball bearing system, it maintains extremely low fan noise (down to 25dB) even at speeds up to 16,000 – 23,000 RPM. Providing 0.4 CFM of airflow while ensuring a quiet experience for your end product in office or home environments.
-
4. Recommended Application Scenarios
- Consumer Electronics: Mini projectors, portable displays, smartphone cooling clips, PDAs.
- IT & Storage: M.2 NVMe SSD coolers, mini PCs, NAS storage servers, DDR memory cooling modules.
- Industrial Control: ESC-based heatsinks for drones, 3D printer extruder cooling, LED plant lighting, small communication modules.
-
5. Why Choose Us?
- Certifications: CE, RoHS, FCC certified, compliant with international export standards.
- Dropshipping: Supports small batch mixed orders and sample testing.
- OEM/ODM: Highly customizable wires, terminals, and coating colors to suit your equipment needs.
| Model | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power |
Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Weight | ||
| PART NO. | B/S/Y | VDC | VDC | AMP | WATT | R.P.M | m3/min | CFM | mmH2O | INH2O | DB-A | g |
| FH1504 | Y | 3 | 2.0 to 6.0 | 0.03 | 0.10 | 10000 | 0.009 | 0.3 | 1.5 | 0.376 | 25.00 | 2 |
| 5 | 2.0 to 6.0 | 0.04 | 0.20 | 16000 | 0.011 | 0.4 | 2.8 | 0.120 | 35.00 | 2 | ||
| 提示1:如果您需要的转速,电压,或者其它功能不在这清 单上，请与我们联系. If you want another RPM,voltage or functions which one in the lise ,please contact our sales. |
||||||||||||
| 提示2:以上数据仅供参考,产品详细信息请参照承认书,如有变更恕不另行通知. Above specifcations are only for reference ,product have a detail in the approcal sheet, if specifaction are subject to change without notice. | ||||||||||||
